The information on this page is intended to help users learn about DMR and outline the required steps to start using the latest in digital voice communications technology.



OVERVIEW

DMR, which is short for Digital Mobile Radio, is a published standard for digital voice communications utilizing TDMA technology. There are several manufacturers that build DMR radio equipment, including Motorola, Vertex Standard, Harris and Hytera, to name a few. The common benefits of using DMR include:

  • Crystal-clear audio without background noise or static;
  • The choice of world wide, regional or local communications;
  • Global text messaging with any other user on the network;
  • Up to 40% longer battery life as compared to similar analog FM operation.

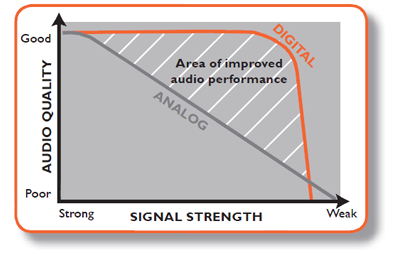

One of the most noticeable difference between DMR and analog FM is the audio clarity. While FM signals get progressively nosier as the signal gets weaker, DMR operation remains crystal clear up until the threshold of coverage is reached, then it quickly becomes unusable, as depicted in the below diagram.

digital_advantages

To leverage the capabilities of this equipment, the Motorola Amateur Radio Club, in conjunction with other regional partners, have created a global network of Internet connected DMR repeaters, utilizing Motorola’s MOTOTRBO technology, called the DMR-MARC network. This network consists of over 200 DMR repeaters in countries including Canada, USA, Germany, Australia, South Africa, New Zealand, Switzerland, Spain, Austria, Finland, and Sweden.



DMR-MARC Logo



Unlike using IRLP or EchoLink where other repeaters are dialled on demand via DTMF using a node number, DMR users can communicate with one another simply by meeting on one of the available regional channels, otherwise known as “talk-groups”. These talk-groups include:

  • World wide talk-group;
  • North American talk-group;
  • Local Toronto talk-group.



Another advantage of using DMR repeaters is their spectral efficiency, as they can allow two simultaneous conversations at a time using dual TDMA timeslots, which are analogous to “channels”, and do so using only 12.5 kHz channel width. Typical analog FM repeaters can only operate on one channel at a time using a single 25 kHz wide channel. So for the same channel width as a typical analog FM repeater, you can four times the capacity with DMR!



EQUIPMENT

DMR equipment is available from a variety of manufacturers that can easily be used for ham radio purposes. The most commonly used and readily available units are from Motorola and Vertex Standard, as there are a large number of commercial users leveraging radios, especially in North America.



VA3XPR DMR digital mobile radio association demystified Toronto presentation amateur radio ham repeater



DMR radios are available in other HTs or mobile units, with the former being the most popular. Since these radios only operate on a single band, the majority of ham radio use of DMR is on the 70cm band and as such, anyone looking to get started in DMR should look for equipment that operates in the 403 – 470 MHz band split. For more information on recommend models, please refer to the FAQ page.



DEMONSTRATION VIDEO

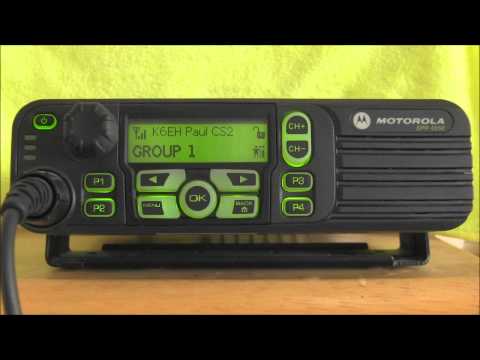

Below is a video that demonstrates the usage of DMR during the DMR-MARC World Wide Net. Take a listen!



MORE INFORMATION

For more information about DMR, check out the FAQ page.
