The Connect Systems (CSI) CS700 portable radio is a low cost, high value Digital Mobile Radio (aka DMR) radio that has recently been released to the ham radio community. Overall, this is a great single band UHF DMR radio for ham radio use on the 70cm band and will make a great radio for anyone interested in getting started with DMR. At the time of this review, the pricing for a new CS700 was $180US, which includes a 1-year warranty.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, CSI

The Connect Systems (CSI) CS700 portable radio is a low cost, high value Digital Mobile Radio (aka DMR) radio that has recently been released to the ham radio community. Overall, this is a great single band UHF DMR radio for ham radio use on the 70cm band and will make a great radio for anyone interested in getting started with DMR. At the time of this review, the pricing for a new CS700 directly from CSI was $180USD, which includes a 1-year warranty.

Review Date: February 9, 2014
Author: Don Trynor, VA3XFT

Price: $180USD

Author’s Rating: Excellent

(4 out of 5)

The Good

  • Quality Construction: Unlike many Chinese-made radios, this radio is well built for the price;
  • Audio Volume and Quality: The audio from this radio is very full, with a good response to low frequencies, making it pleasing to listen to and it will get heard, even in the noisiest environments;
  • Programming Software: The programming software is available for free and is relatively easy to use;
  • Vendor Support: The vendor has a long history of providing ham radio products and appears committed to making a great DMR radio for the ham radio community;
  • Price: At $180, this radio is an attractive option for anyone looking to get started with DMR;

The Bad

  • Software Defects: The current version of the radio’s firmware and the associated programming software still have many software defects to be resolved.



The Full Review

Features

The CS700 comes standard with the following features:

  • Frequency range includes the 400 – 470 MHz UHF band;
  • Dual mode digital DMR and analog FM operation;
  • Compatible with Motorola DMR radios;
  • Supports up to 1,000 channels and 1,000 contacts;
  • 1-year warranty.

Form Factor

The CS700 is a compact portable radio that is small, lightweight, has a great ergonomic design. Being only about 13cm (5 1/4”) high or 27cm (10 3/4”) with the antenna and about 275g (9.7oz) in weight, this radio fits nicely in the hand and can even be carried in a shirt pocket, making it a pleasure to use. In addition to its design, the radio appears to be well built, unlike many other Chinese-made radios. The radio feels very solid and the accessories fit well, including the battery, antenna and the accessory port dust protector.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, keypad, display, LCD, front, CSI

While the CS700 does not claim to meet any specific environmental operating standards, its build quality should more than suffice for typical ham radio use.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, Motorola, MOTOTRBO, XPR 7550, UHF, Vertex Standard, EVX-534, eVerge

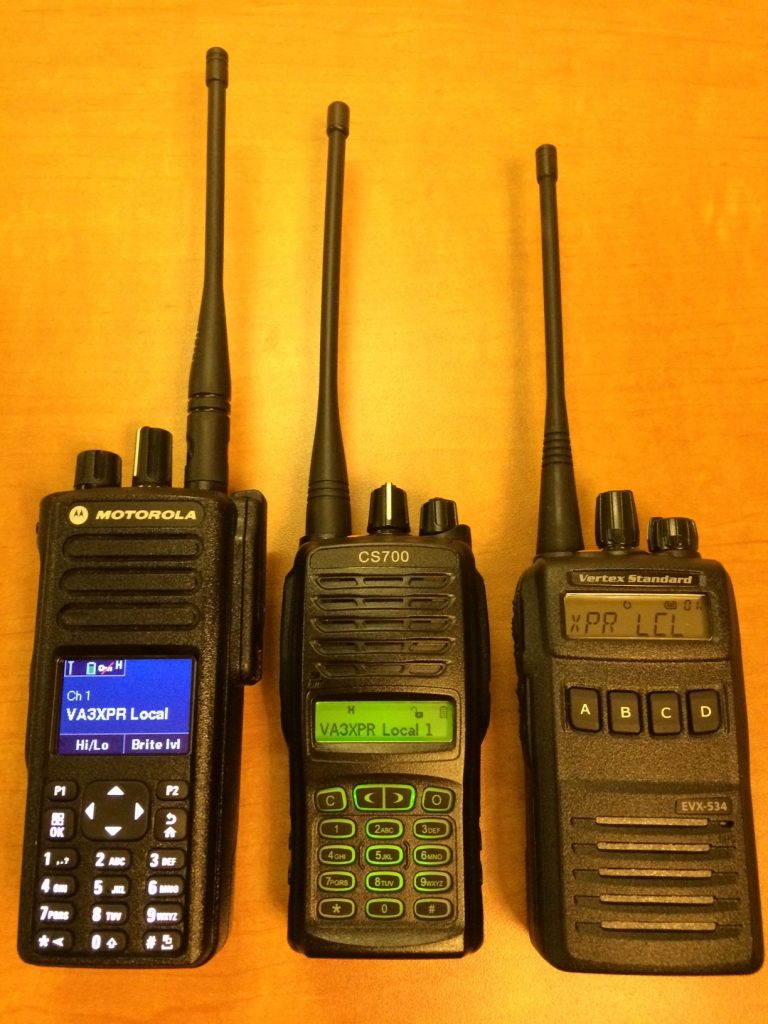

From the left, the Motorola MOTOTRBO XPR 7550, the Connect System CS700 and the Vertex Standard EVX-534.

Knobs, Buttons & Switches

There are two knobs on the CS700 – one is the power switch/volume knob and the other is the channel selector knob. Both of these knobs are easily accessed on the top of the radio and they both provide a slight “click” as positive indication that either the radio is turned on/of or that the channel is changed. Unlike with some other DMR radios, the channel change knob does not continuously rotate and is limited to the standard 16 positions. Also, while the knobs have not been constructed using a high grip material, they can used wearing gloves or mittens.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, top view, UHF, antenna connector, knobs, CSI

The Connect Systems CS700 – the top view.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, PTT, button, side, UHF, CSI

The Connect Systems CS700 – the side view showing the PTT and programmable side buttons.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, accessory connector, side, UHF, CSI

The Connect Systems CS700 – the side view showing the accessory connector.

With regard buttons, the CS700 comes equipped with two programmable side buttons and one programmable top button. The function of each of these can be set in the programming software to perform the desired task. Also, the CS700 comes equipped with a 15-button keypad, which includes a 2-way navigation button to navigate the radio’s menu and settings. It should be noted that the CS700 does include the DTMF keys “A”, “B”, “C” and “D”, which are sometimes used with ham radio applications. For users who want to use this radio with DTMF applications, such IRLP in analog mode, they will be disappointed to find that the current version of firmware v1.023, does not support DTMF functionality.

The keypad buttons are constructed of high grip material, making them easy to push without having the fingers slip accidentally, plus they are backlit, which helps a great deal when using the radio at night or in dark environments.

Antenna

The CS700 comes standard with a wideband UHF whip antenna. The antenna connector used with the CS700 is a standard SMA male connector, making it easy and inexpensive to connect it with an external antenna with the purchase of a SMA female adapter.

Audio

One of the best features of this radio is its audio quality, which is impressive for such a small form factor. Not only does the radio have loud, clear audio, but it also has a wide audio frequency response, providing good response to low audio frequencies. The rated speaker output from the vendor is 1,000mW, which may be overstated, since the radio volume seems to be on par with other DMR radios that have a 500mW speaker. Nonetheless, this radio will be heard in noisy environments where many typical ham radio portables will be inaudible. The fullness of the audio is one of the best features of the radio, making it a very pleasing unit to listen to.

One annoyance about the radio’s speaker audio is that it pops every time a tone is emitted, such as the Talk Permit Tone, power on tone etc. While this is not a serious flaw, it is an item that could be annoying to some users. Another item that can be a bit frustrating is that the Talk Permit Tone is sent with the transmit audio when the user keys the PTT, which should not be the case. To prevent this, the user can simply disable the Talk Permit Tone in the radio’s settings menu. While neither of these defects prevents use of the radio, they can be frustrating for the user and will hopefully be addressed in an upcoming firmware release.

With regard to microphone audio, the audio appeared to be fine, right out of the box with good reports from other stations being received during test transmissions. It should be noted that the microphone audio level appears not to be user adjustable, so if users receive complaints of hot or low audio, they will need to adjust the distance to which they are talking into the radio.

Display & Indicators

The CS700 uses a green two-line illuminated LCD display, which appears to be identical to the one used with the Motorola XPR6550, right down to the icon set used. The display accommodates contacts, talkgroups and channel information of up to 16 characters, making it quite adequate for most ham radio uses. Also, the backlight is not adjustable by the user and cannot be assigned as a programmable button in the programming software – both of which could be considered as potential radio improvements with a future firmware update.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, LCD display, UHF, front, CSI

The Connect System CS700 – the LCD display.

There is a single LED indicator on the top front of the radio that is used to indicate the radio’s status as follows:

  • Green: Received signal present
  • Orange: Radio is scanning
  • Red: Radio transmitting

Modes of Operation

The CS700 is a dual mode UHF radio, allowing it to operate in either digital mode using DMR or in analog mode using FM. When in analog FM mode, the radio will support either 12.5 or 25 kHz channel operation. This will allow users to easily make the switch to DMR while continuing to allow them to operate using traditional 25 kHz FM.

RF Performance

The RF performance of the CS700 compares specification-wise pretty much on par with most other DMR radios available on the market today. The transmit power of the radio can be set to either low power (~1W) or high power (~4W), but it not adjustable in terms of the values associated with each of these settings.

Accessories

The CS700 comes standard with a 7.4V 1700mAh Li-ion battery (CB-01), a 120/240V rapid charger (CP-01), belt clip, wrist strap and a user manual. Additional batteries and accessories, such as a speaker microphone, can be purchased from Connect Systems. Since the CS700 employs a dual pin accessory connector, which is used for programming and audio accessories, it should be compatible (per Connect Systems) with other dual pin speaker microphones, such as the Motorola speaker microphone PMMN4013A.

Connect System, CS700, UHF, DMR, digital mobile radio, HT, portable, radio, ham radio, amateur radio, VA3XPR, review, package, standard, box, UHF, CSI

The standard Connect Systems CS700 package.

Programming Software

The CS700 is programmed using the free programming software that is provided on the Connect Systems website and a USB programming cable, which can be purchased from Connect Systems for about $5. The programming software is intuitively structured, which should make it relatively easy to use, even for beginners. It should be noted that the radio used with this review was set-up and programmed within 30 minutes, demonstrating the ease of use of this software. While it is refreshing to see intuitive programming software included with the radio, it is still not without its own headaches. Below are some examples of defects that were encountered with v1.14 of the programming software:

  • During the initial programming of the radio, the software crashed and needed to be restarted;
  • There are some instances of missing or incomplete English translations in the software;
  • Users are able to change the language of the programming software to Chinese, which may be difficult to revert back to English for some users, so beware;
  • Some configuration in the programming software conflicts with items found in the radio menu. An example is that the Call Receive Tone, which can be enabled in the programming software on a per contact basis, however it does not function and cannot be found in the radio’s keypad menu under Utilities > Radio Settings > Tones and Alerts.

It should be emphasized that while the programming software does have some defects and could be improved over time, it is overall, quite easy to use and will likely help many users new to DMR get started with much less frustration than were they using the programming software from other DMR radio manufacturers. A big plus for this radio would be the ability to program it completely using the keypad, commonly known as Front Panel Programmable, or “FPP” for short.

To upgrade the firmware of the radio, there is a separate firmware upgrade software package, which is also available for free and downloadable from the Connect System website.

Vendor Support

Connect Systems, the vendor of this radio, has been providing communications products to the ham radio community since 1982, as indicated on their website. With the impressive growth DMR has seen in recent years within ham radio, it is timely that this vendor should bring to market a low-cost, high value DMR radio intended to serve the needs of the ham radio community. Through conversations with Connect Systems president, Jerry Wanger, it appears that Connect Systems genuinely listens to the needs of the ham radio community, both in addressing problems with this product and in developing additional features for this and other related products. Given this, it is likely that the radio will see quick adoption with hams, which will further fuel the rapid adoption of DMR within the ham radio community.

Conclusion

The CS700 is a great low cost option for anyone looking to get started with DMR and at $180US price point, they really cannot go wrong. While the radio still has some software defects to be worked out over time, we feel that it is well positioned to become a winner within the ham radio community.
