Photos

VA3XPR repeater amateur radio ham UHF 650 Parliament Street Toronto downtown MSF5000 Motorola

Here is a picture of the VA3XPR repeater site, where you can see the antenna on the top of the building.

VA3XPR repeater site lake ontario JAG antenna Toronto amateur radio ham UHF folded dipole MSF5000

The southern view toward Lake Ontario. You can see the JAG antenna to the right.

VA3XPR repeater amateur radio ham Toronto

The northern view, where you can see the office towers at Yonge & Eglinton to the left and the ones at Don Mills & Sheppard to the right.

VA3XPR repeater scarborough Toronto amateur radio ham

The eastern view toward the former municipality of Scarborough.

St. Jamestown Toronto neighbourhood VA3XPR amateur radio ham repeater

The view to the west from the VA3XPR repeater site.

VA3XPR Repeater Controller MSF5000 arcom rc210 controller UHF amateur radio ham Toronto

Here’s a picture of the VA3XPR analog FM repeater, which consists of a MSF5000 UHF repeater and the Arcom RC-210 controller. Lots of colourful little lights – almost like a Christmas tree! Photo courtesy of Swire Chin.

VA3XPR digital DMR repeater Toronto Motorola XPR8400 Mototrbo ham amateur Sinclair duplexer Q3220E UHF

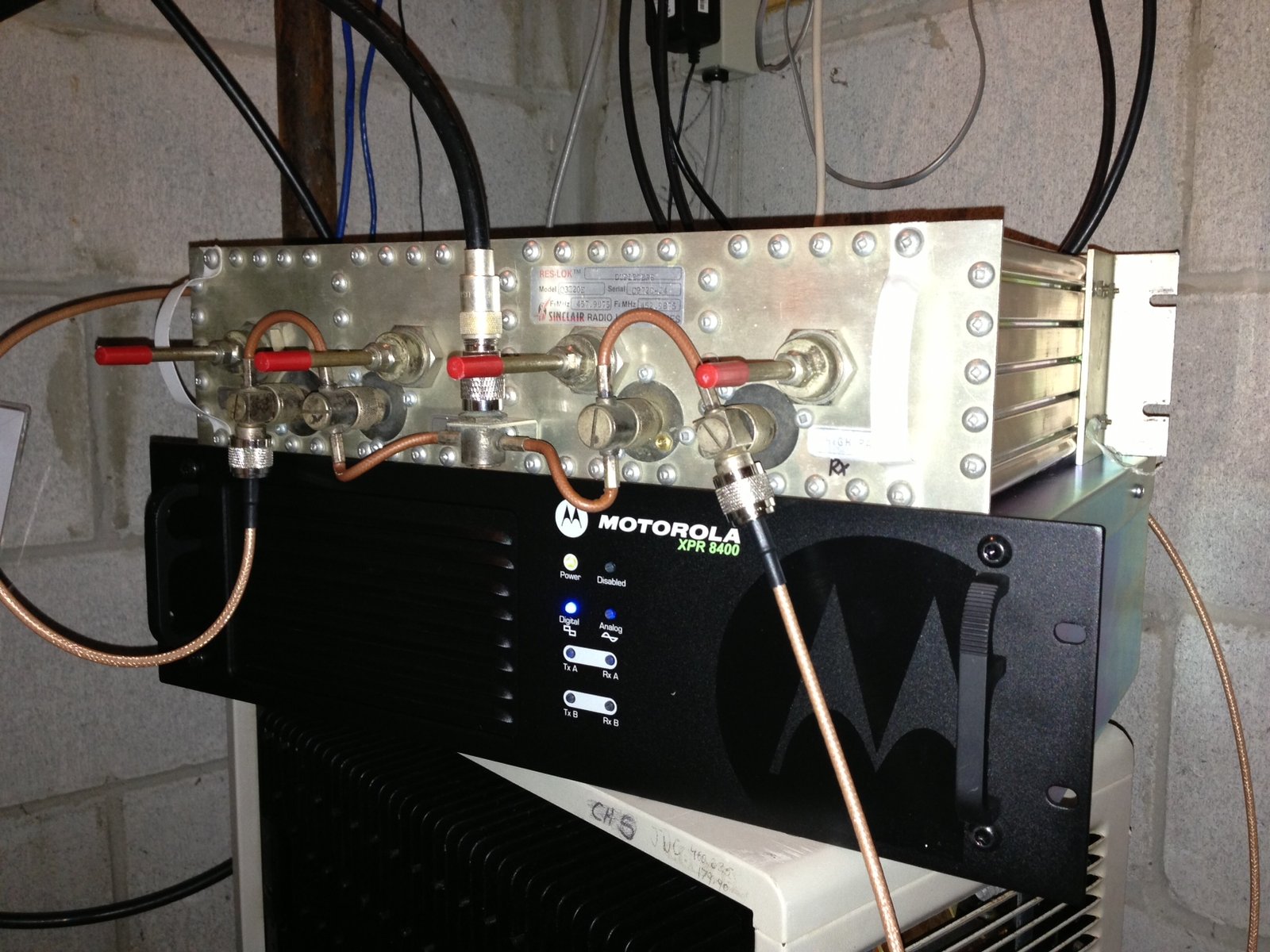

The VA3XPR digital DMR repeater, which consists of a Motorola MOTOTRBO XPR8400 UHF repeater and a Sinclair Res-Lok Q3220E duplexer, being staged prior to going live at the VA3XPR repeater site.

VA3XPR antenna JAG Eletromagnetics FM repeater Toronto DMR digital mobile radio folded dipole ham amateur 310C4 310C2 RF

The VA3XPR repeater antennas, with the digital DMR repeater antenna on the left, facing NW and the newly installed analog FM repeater antenna on the right, facing SE.
